Building high-end emergency rescue equipment in China
Building high-end emergency rescue equipment in China
Detailed Introduction
|
Model Number |
JY816-P |
||
|
Size |
≤10000×2500×3200mm |
Travel Speed |
≥55km/h |
|
Across the width of the gully |
≥1.5m |
Height over vertical barriers |
≥0.6m |
|
Maximum Climbing Capacity |
≥30° |
Power (Output) |
≥220kw |
|
Fuel tank volume |
≥500L |
Maximum Drainage Flow |
≥3000m³/h |
Core functions:
Dismantling and rescue: The hydraulic dismantling tool set has a maximum shear force of 38 tons and can cut through reinforced concrete structures (such as earthquake ruins).
Life detection: The radar life detector has a penetration depth of>6 meters, a positioning accuracy of ± 0.5 meters, and supports a 72 hour golden rescue window.
Highlight Scene:
Earthquake collapse: The drilling speed of the rock drill is greater than 1m/min, quickly opening up the rescue channel.

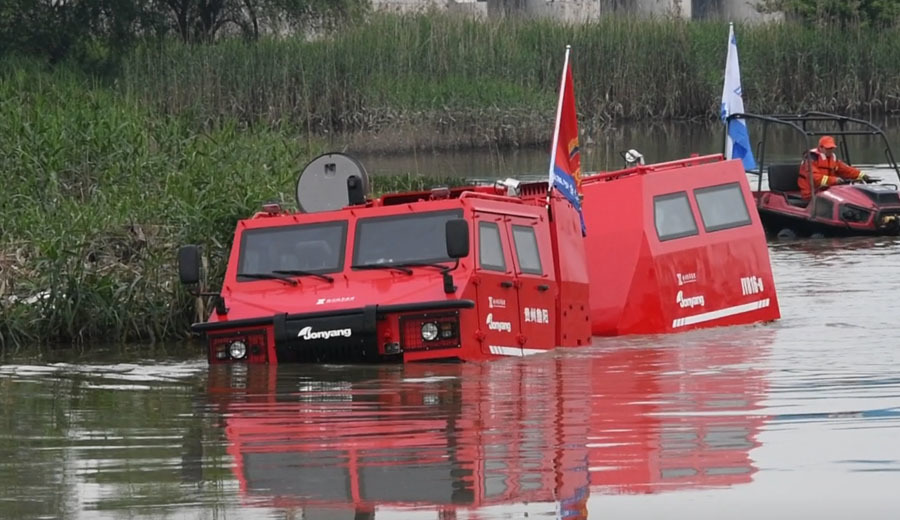

1. Integrated rubber track chassis
Advanced technology design, with super strong off-road capabilities, can adapt to complex terrains such as mountains, snow, swamps, deserts, and water bodies.
Amphibious function, with a highway speed of over 55km/h, balancing maneuverability and passability.
2. Fully hydraulic drive, continuously variable transmission
Adopting advanced international technology, four-wheel drive continuously variable transmission, easy to operate (similar to automatic transmission vehicles), and friendly driving experience.
3. Customizable rear carriage
Modular design allows for quick replacement or selection of equipment according to emergency needs, meeting diverse rescue tasks.
4. All terrain universality
Adapt to extreme environments (-41 ℃ to 46 ℃, altitude above 4800m), covering high-altitude, Gobi, forest, polar and other scenes.
key word: Jonyang
Special operation equipment rescue vehicle JY816-P
1. Integrated rubber track chassis 2. Fully hydraulic drive, continuously variable transmission 3. Customizable rear carriage 4. All terrain universality
