Building high-end emergency rescue equipment in China
Building high-end emergency rescue equipment in China
Detailed Introduction
Model | JY816-F | ||
Size | ≤10000×2500×3200mm | Traveling speed | ≥55km/h |
Width across the gully | ≥1.5m | Vertical obstacle height | ≥0.6m |
Maximum climbing capacity | ≥30° | Power | ≥220kw |
Fuel tank volume | ≥500L | Fire water cannon flow | ≥20L/s |
Core functions:

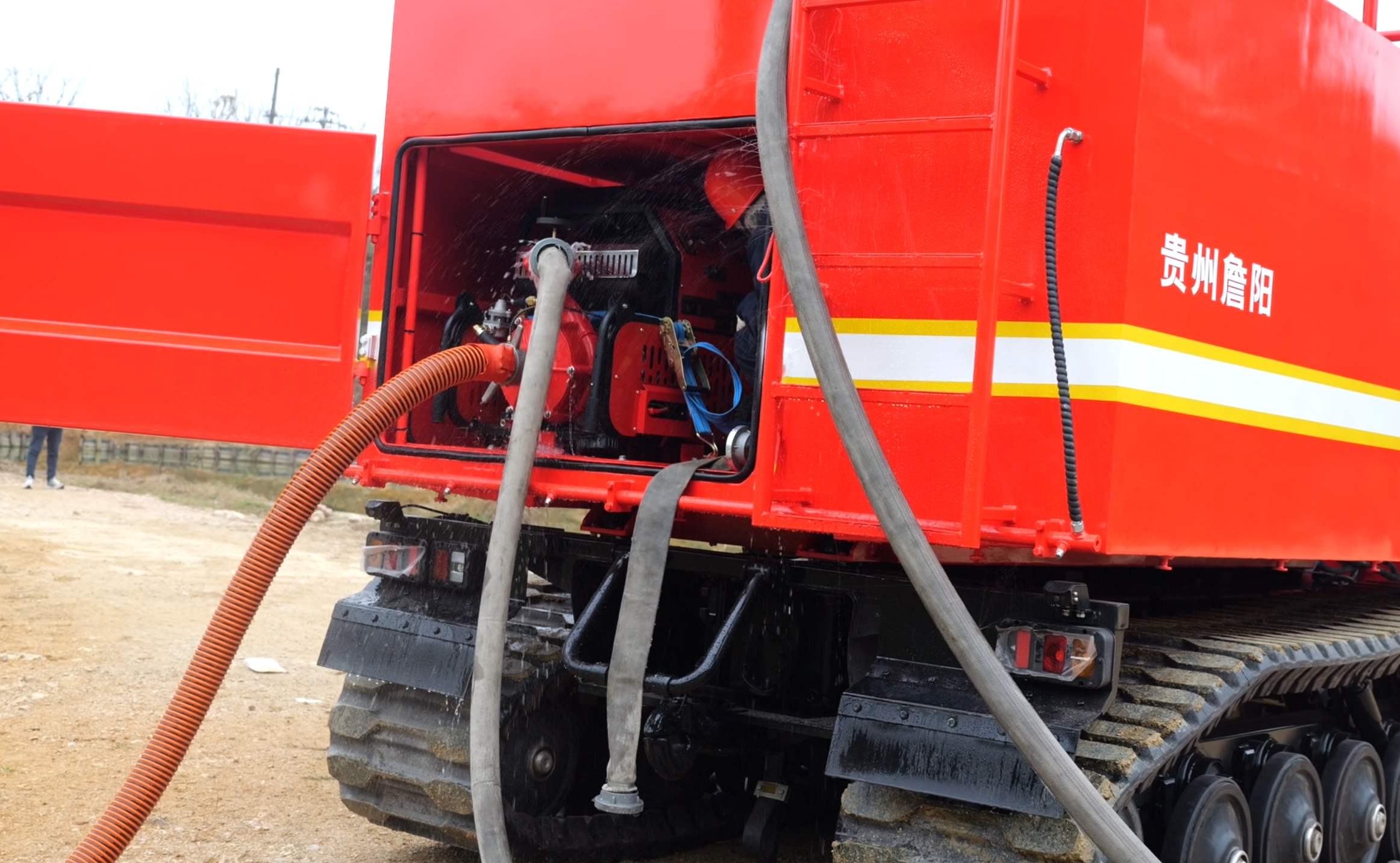

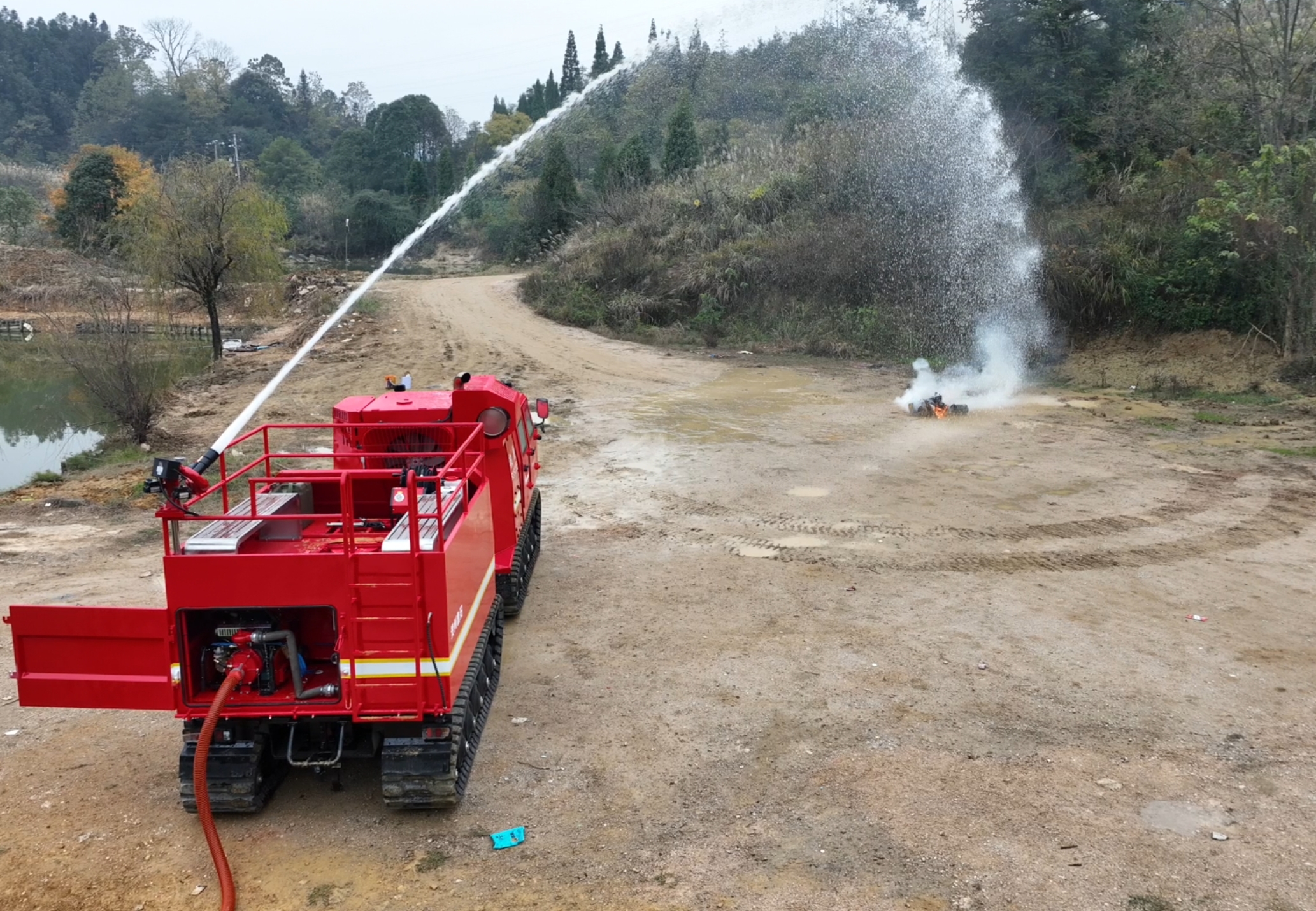

Independent fire extinguishing: equipped with 2000L foam liquid tank and high-pressure pump (pressure>1.5MPa), with a single spraying coverage area>200 ㎡.
Collaborative operation: When working in conjunction with the secondary water supply vehicle, it can continuously supply liquid for 2 hours to suppress large fires (such as forest fires).
Highlight Scene:
Chemical plant fire: corrosion resistant foam liquid (AFFF type) can extinguish oil and chemical fire sources and prevent secondary explosion.

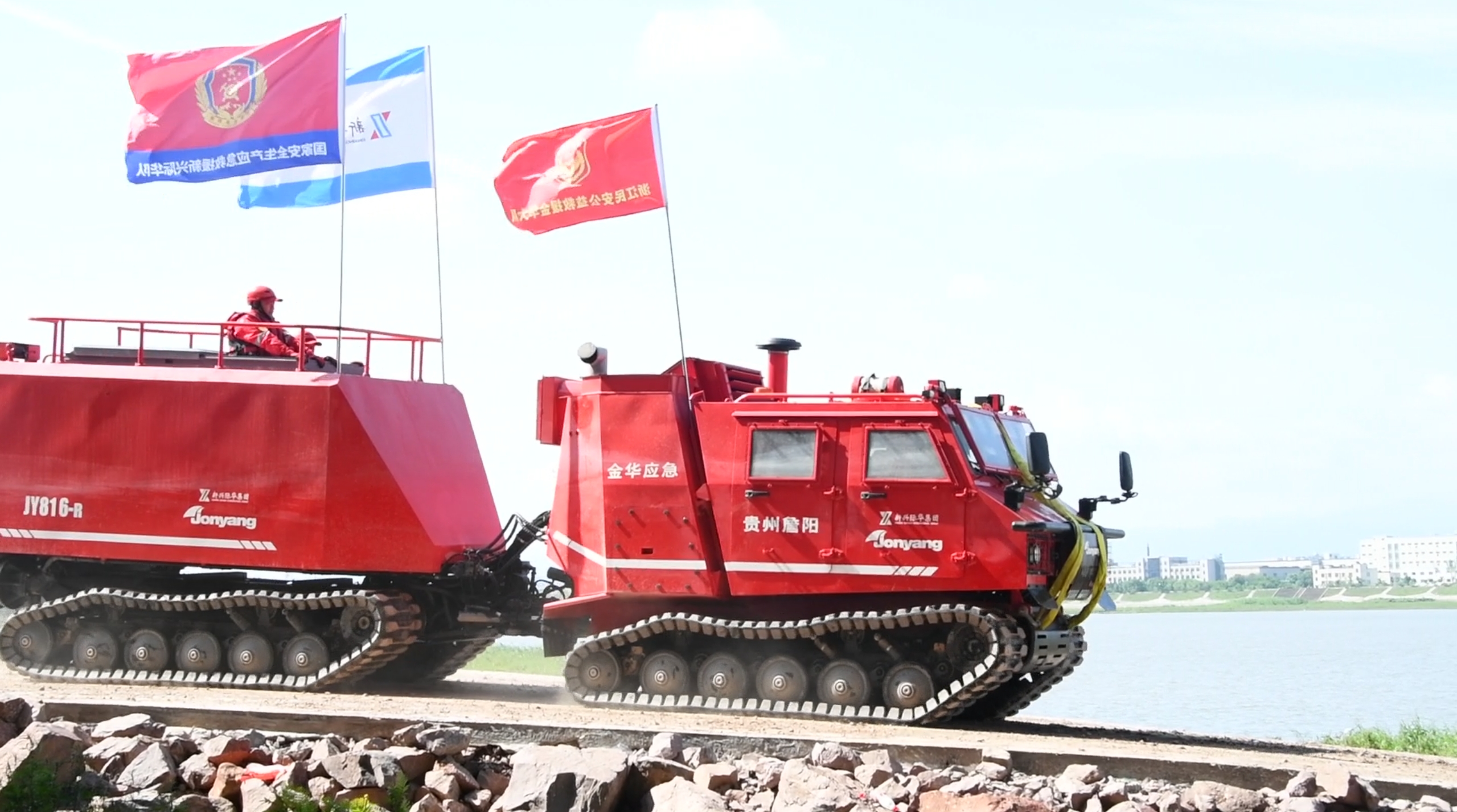

1. Integrated rubber track chassis
Advanced technology design, with super strong off-road capabilities, can adapt to complex terrains such as mountains, snow, swamps, deserts, and water bodies.
Amphibious function, with a highway speed of over 55km/h, balancing maneuverability and passability.
2. Fully hydraulic drive, continuously variable transmission
Adopting advanced international technology, four-wheel drive continuously variable transmission, easy to operate (similar to automatic transmission vehicles), and friendly driving experience.
3. Customizable rear carriage
Modular design allows for quick replacement or selection of equipment according to emergency needs, meeting diverse rescue tasks.
4. All terrain universality
Adapt to extreme environments (-41 ℃ to 46 ℃, altitude above 4800m), covering high-altitude, Gobi, forest, polar and other scenes.
key word: Jonyang
Foam extinguishing train JY816-F
1. Integrated rubber track chassis 2. Fully hydraulic drive, continuously variable transmission 3. Customizable rear carriage 4. All terrain universality
Category:
Hotline:
+86-15308526758、+86-13078521618
+86-18785138377、+86-15185117573
Detailed Introduction
Model | JY816-F | ||
Size | ≤10000×2500×3200mm | Traveling speed | ≥55km/h |
Width across the gully | ≥1.5m | Vertical obstacle height | ≥0.6m |
Maximum climbing capacity | ≥30° | Power | ≥220kw |
Fuel tank volume | ≥500L | Fire water cannon flow | ≥20L/s |
Core functions:
Independent fire extinguishing: equipped with 2000L foam liquid tank and high-pressure pump (pressure>1.5MPa), with a single spraying coverage area>200 ㎡.
Collaborative operation: When working in conjunction with the secondary water supply vehicle, it can continuously supply liquid for 2 hours to suppress large fires (such as forest fires).
Highlight Scene:
Chemical plant fire: corrosion resistant foam liquid (AFFF type) can extinguish oil and chemical fire sources and prevent secondary explosion.
1. Integrated rubber track chassis
Advanced technology design, with super strong off-road capabilities, can adapt to complex terrains such as mountains, snow, swamps, deserts, and water bodies.
Amphibious function, with a highway speed of over 55km/h, balancing maneuverability and passability.
2. Fully hydraulic drive, continuously variable transmission
Adopting advanced international technology, four-wheel drive continuously variable transmission, easy to operate (similar to automatic transmission vehicles), and friendly driving experience.
3. Customizable rear carriage
Modular design allows for quick replacement or selection of equipment according to emergency needs, meeting diverse rescue tasks.
4. All terrain universality
Adapt to extreme environments (-41 ℃ to 46 ℃, altitude above 4800m), covering high-altitude, Gobi, forest, polar and other scenes.
key word: Jonyang
