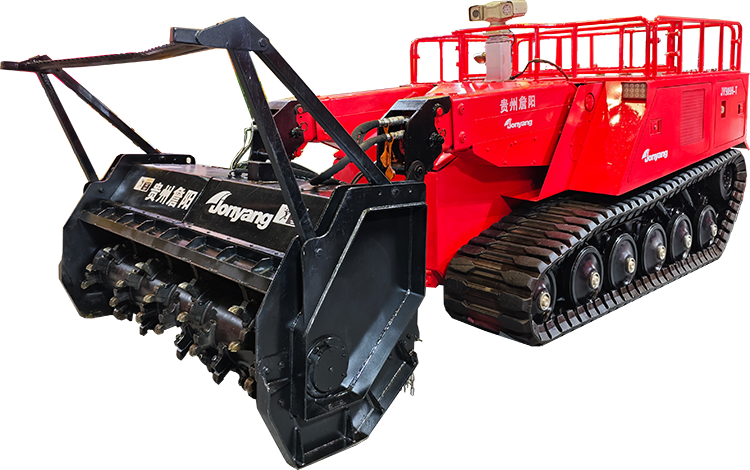

Model	JY909-T
Size	≤6000×2800×2300mm	Driving speed	≥25km/h
Weight	≤9000kg	Crushing tree diameter	≥300mm
Maximum climbing capacity	≥30°	Power	≥150kw
Fuel tank volume	≥200L	remote distance	200m
Optional devices	landformer, snowplow device, clearing device



（1） Technical performance
1. Remote wireless remote control capability
Over the horizon remote control: This obstacle clearing vehicle supports a maximum control distance of ≥ 200m and can optimize signal transmission methods according to actual needs to adapt to stable control in different terrain environments.
2. High speed maneuverability
The maximum speed is ≥ 20km/h, with 5 gears, providing extremely high maneuverability and the ability to quickly perform obstacle clearance and other tasks.
3. Environmental detection system
Equipped with a drone detection system, it can conduct terrain survey and on-site analysis before the arrival of the clearing vehicle, helping to plan the operation route.
Gas sensor: capable of monitoring oxygen concentration, combustible gases, and ambient temperature, providing real-time environmental data for operators.
4. Multi functional homework device
Equipped with various operation devices such as excavation, shovel pushing, and fork lifting, it can quickly adapt to different operation needs.
The "four in one" working device under development will further enhance its operational functions, supporting multiple operating modes such as clamping, pushing, dragging, and pulling.
It can also be equipped with smoke extractor, fire monitor, disinfection and sterilization and other equipment to improve the adaptability of multiple scenarios.



5. Powerful load and operating radius
The maximum operating radius of the robotic arm is 2.2 meters, which can operate over a larger range and provide higher operational flexibility.
The maximum gripping weight of the clamping device is 2 tons, and it has strong obstacle clearing ability, which can efficiently remove obstacles.
6. Wide working temperature range
This device is capable of stable operation under extreme temperature conditions ranging from -40 ℃ to 55 ℃, and is adaptable to various complex environments.

（2） Product advantages
1. Remote operation to ensure security
Through wireless remote control, the operator can remotely control the obstacle clearing vehicle to perform tasks without entering the site, avoiding personnel exposure to hazardous environments.
2. High speed response to improve work efficiency
Capable of high-speed mobility, able to quickly move between different sites, quickly handle obstacles and perform other tasks, and improve overall work efficiency.
3. Accurate environment detection to enhance decision support for homework
Equipped with a drone detection system and gas sensors, it can obtain real-time on-site environmental data, provide scientific basis for operations, and improve operational accuracy.
4. Modular homework design, suitable for multi scenario tasks
The flexible design of the homework device enables the obstacle clearing vehicle to quickly switch work modes, meet different homework needs, and efficiently perform tasks such as obstacle cleaning, material handling, and environmental monitoring.
5. Strong load capacity and operating radius
By using a powerful clamping and pushing device and a robotic arm operating radius, heavy obstacles can be easily cleared to ensure the smooth progress of the task.
6. Adapt to extreme environments
Capable of operating within extreme temperature ranges and adapting to various natural environmental conditions, from extreme cold to hot, it can work stably.

Over the horizon remote control: This obstacle clearing vehicle supports a maximum control distance of ≥ 200m and can optimize signal transmission methods according to actual needs to adapt to stable control in different terrain environments
